ASME Class 125 Flanged End Connections

The  Elastic Swing Foot Valve is standard with a ductile iron body, ASME Class 125 flanges and is suitable for municipal and industrial applications. The internal body is epoxy coated. Special coatings are available upon request. The one-piece molded disc has a steel reinforced insert to ensure closure, but while in the open position will allow 100%  uninterrupted flow. The one-piece disc hinge and flapper can be repaired without removal of the valve from the line. The Elastic Swing Foot Valve is designed for continuous flow applications and is not recommended for reciprocating pumps. The Elastic Swing Foot Valve can be installed in a vertical or horizontal pipeline.

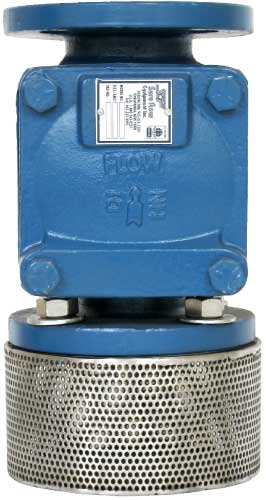

FVCEXF125 Elastic Swing Foot Valve


For a full page, printable version of this information, please click on the PDF icon.
